Electric Trace Heating

Pipe Heat Loss Chart

Pipe Heat Loss

  • Pipe heat loss (Qs) is shown in watts per metre (W/m).
  • Heat loss calculation is based on metal pipes insulated with glass fibre and located outdoors in a 8.9 m/s wind.
  • A 10% safety factor has been included.
  • For indoor applications multiply heat loss by 0.9.
trace heating pipe heat loss trace heating pipe heat loss trace heating pipe heat loss

Insulation Factors

trace heating pipe heat loss

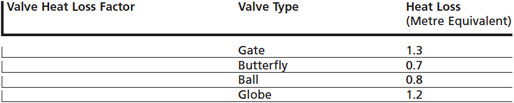

Valve Heat Loss Factors

trace heating pipe heat loss
